Fig. 6

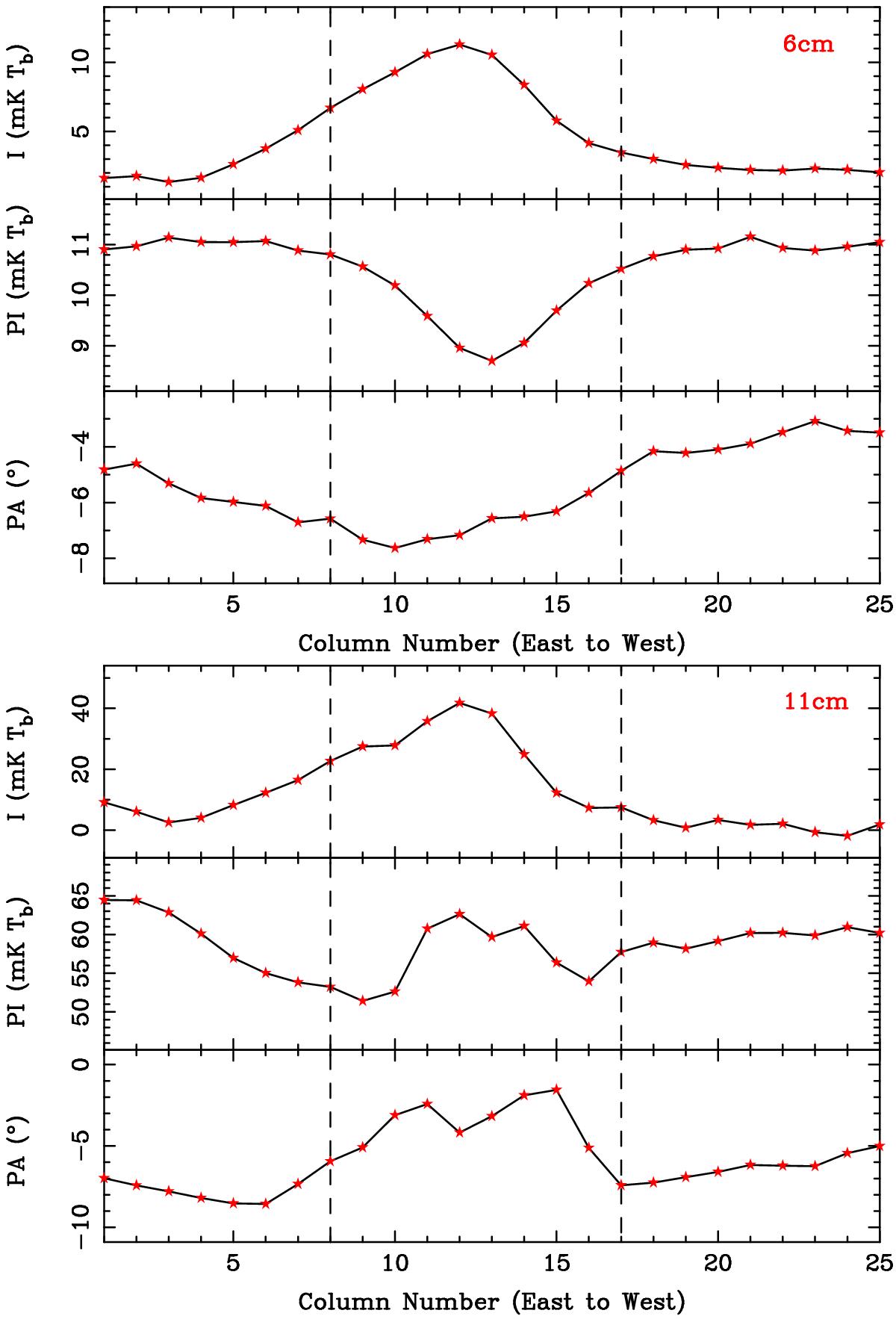

Upper panel: profiles of the λ6 cm I (relative zero level), PI (absolute zero level), and PA (absolute zero level) averaged perpendicular to the western shell of the W4 superbubble within the area marked by the large white rectangular region in Fig. 1. The pixel size is 3. The vertical dashed lines indicate the “on – off” boundaries of the Faraday screen. Lower panel: the same as the upper panel, but for the Effelsberg λ11 cm data.

This figure is made of several images, please see below:
