Fig. 4

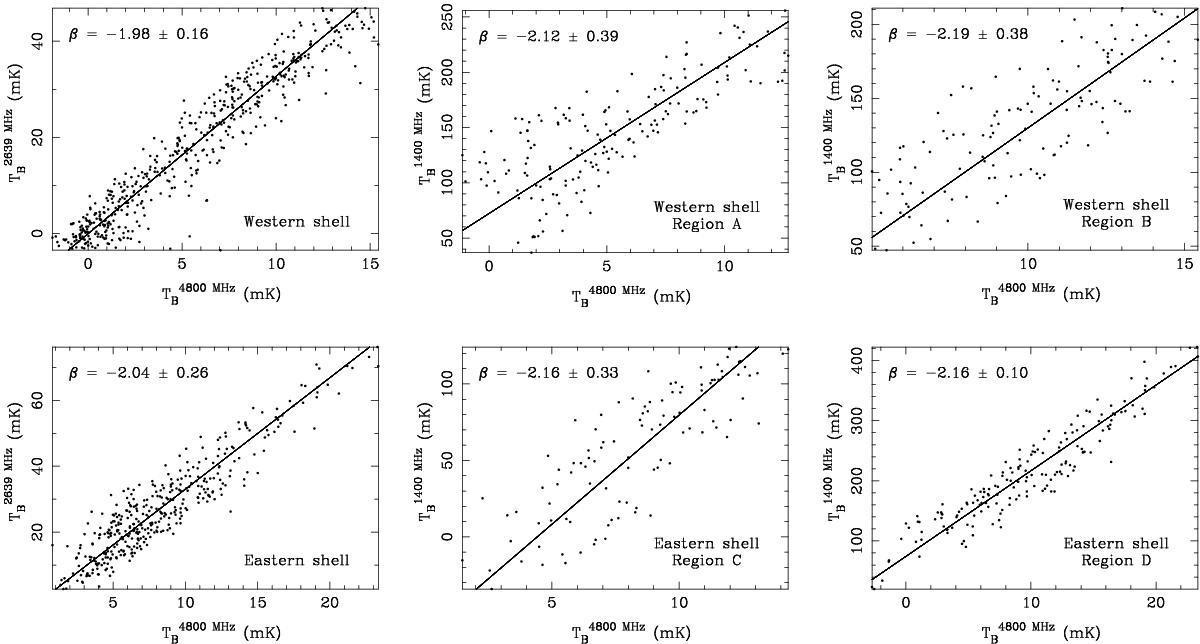

TT-plot results for the western shell (upper panels) and the eastern shell (lower panels) of the W4 superbubble between λ6 cm and λ11 cm (left panels) and for the four regions (A, B, C, and D) in the shells (see Fig. 1) between λ6 cm and λ21 cm.

This figure is made of several images, please see below:
