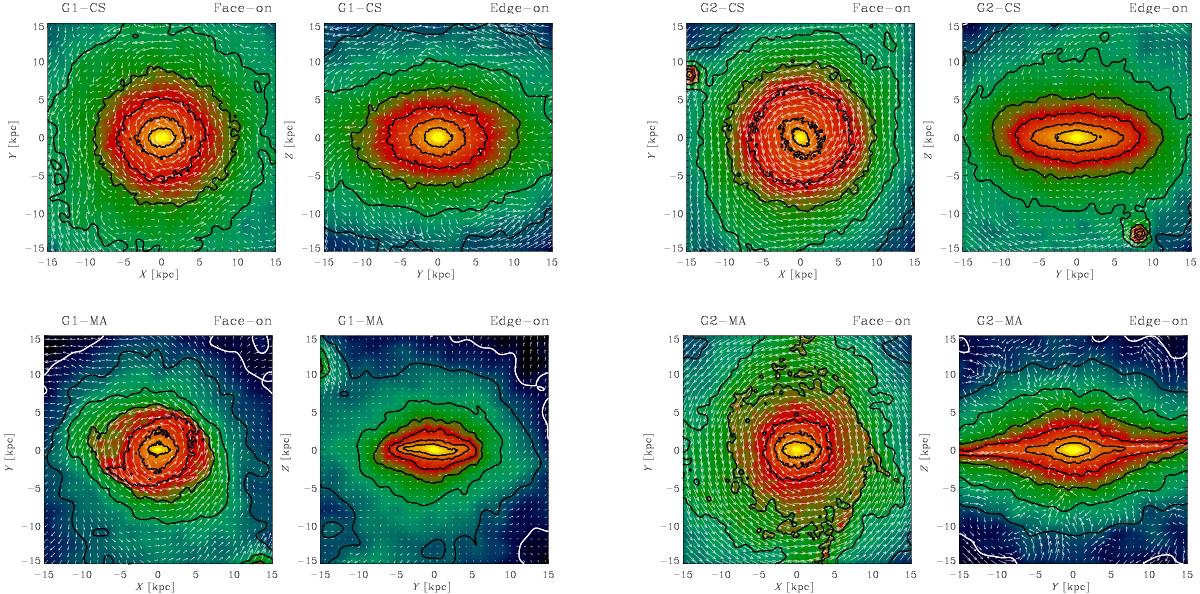

Fig. 4


Projected stellar mass density of G1 (left-hand panels) and G2 (right-hand panels) showing edge-on and face-on views for simulation runs CS (upper panels) and MA (lower panels). Also shown are the velocity field (arrows) and isodensity contours (solid lines) in the corresponding plane.

This figure is made of several images, please see below:
