Fig. 6

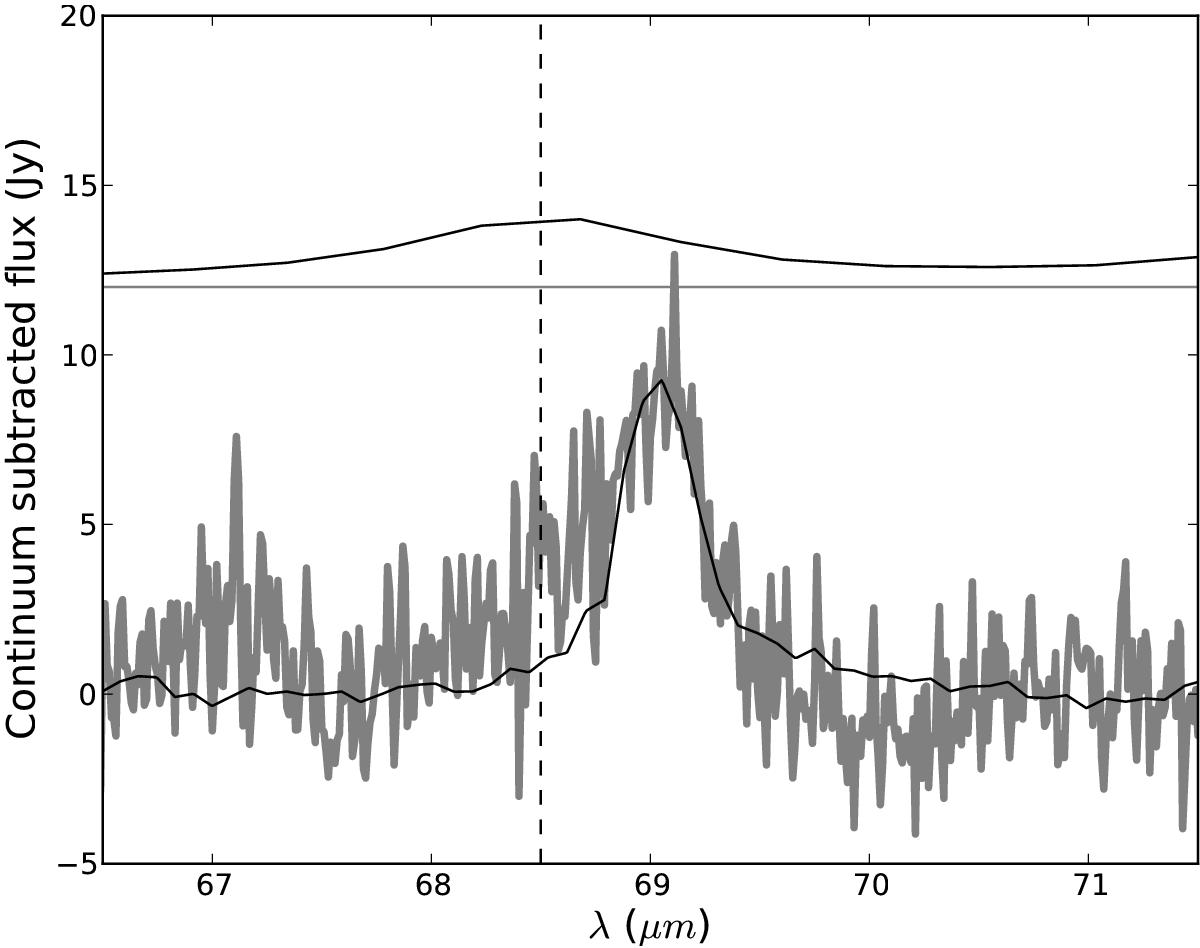

Shown in grey is the observed, continuum subtracted 69 μm band and over plotted in black a radiative transport model (Whole model, forsterite grain size of 4 μm). Shifted to the horizontal grey line are shown the scaled absorption opacities of ortho-enstatite (Chihara et al. 2002) in black. Ortho-enstatite has a resonance around 68.5 μm, indicated with a dashed black vertical line.
