Fig. 5

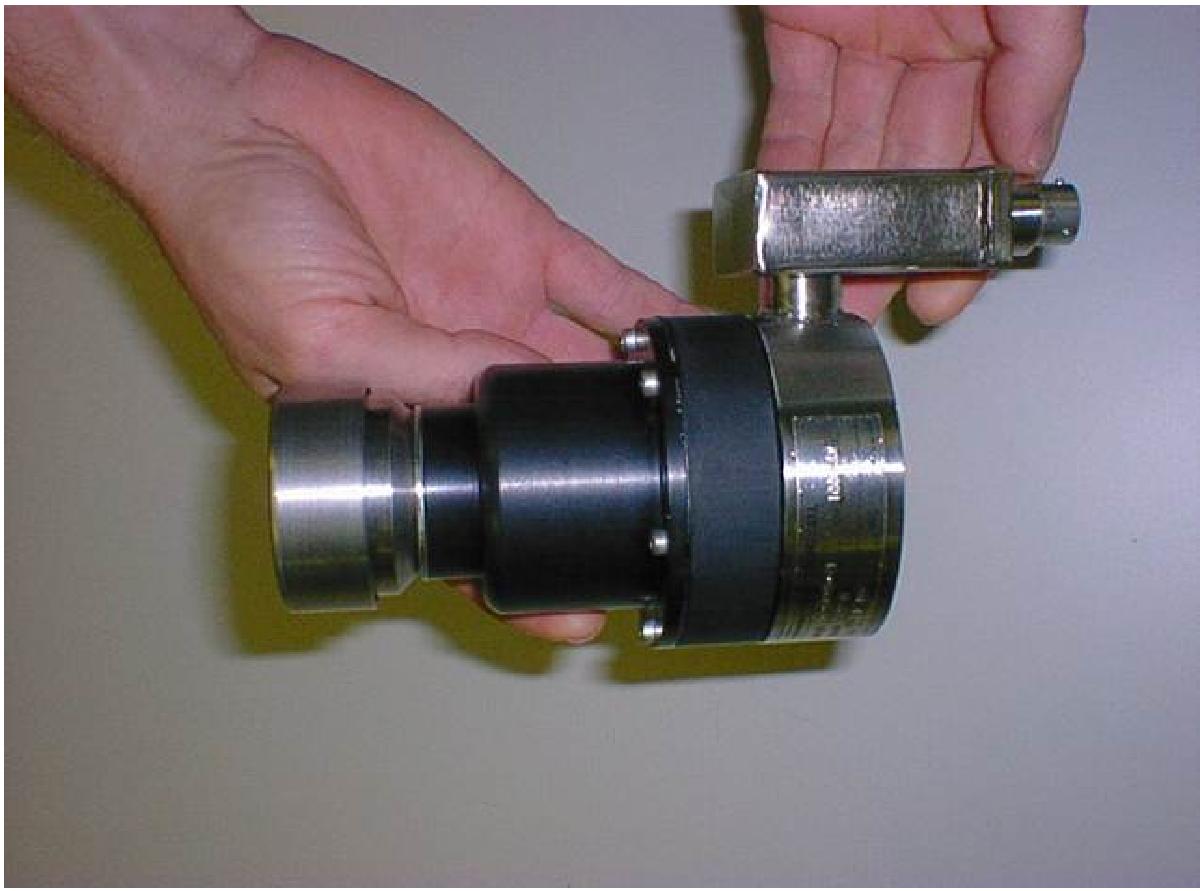

One of the 81 primary mirror axial supports. In operation, the metallic cap (at left) pushes against the M1 metal pad via the pneumatic cylinder at centre. The load-cell is on the right, with readout electronics in the cuboid unit above.
