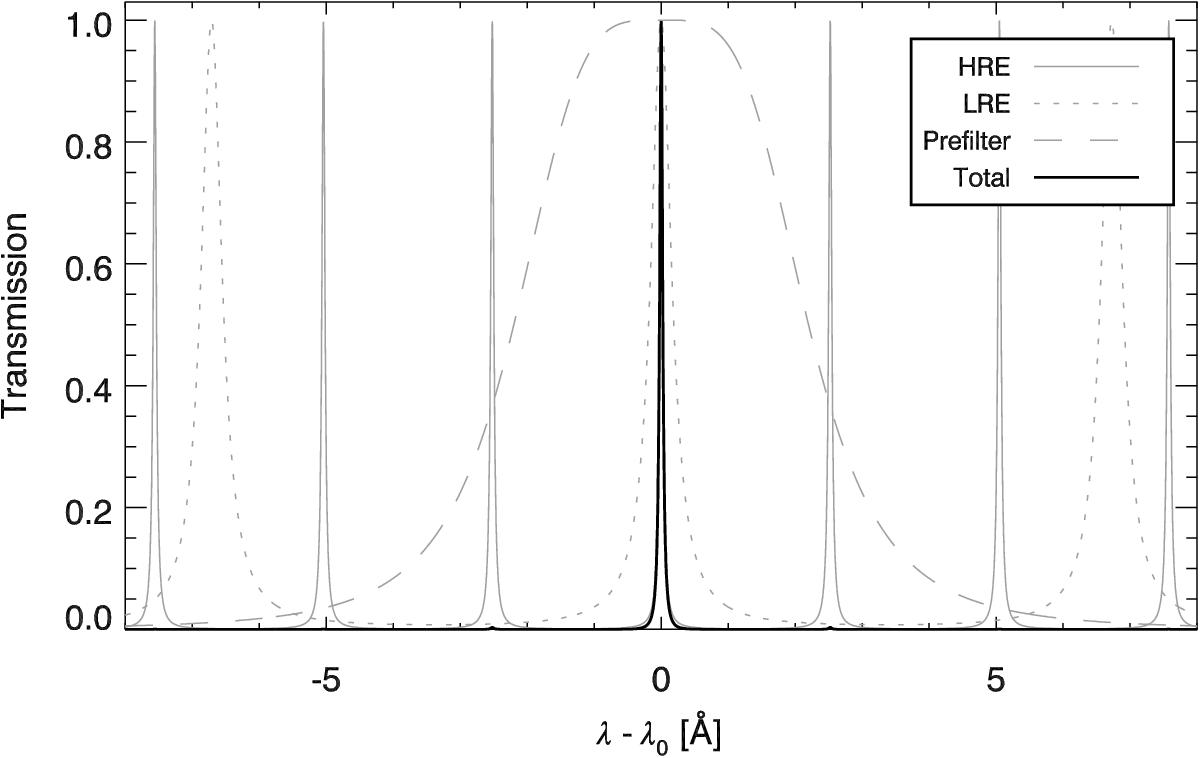

Fig. 3


Approximate CRISP transmission profile at 630 nm, computed theoretically assuming perpendicular incidence of the beam with the surface of both etalons. The individual contributions from the high resolution etalon, the low resolution etalon, and the prefilter are shown along with the total transmission. All curves are normalized to unity.
