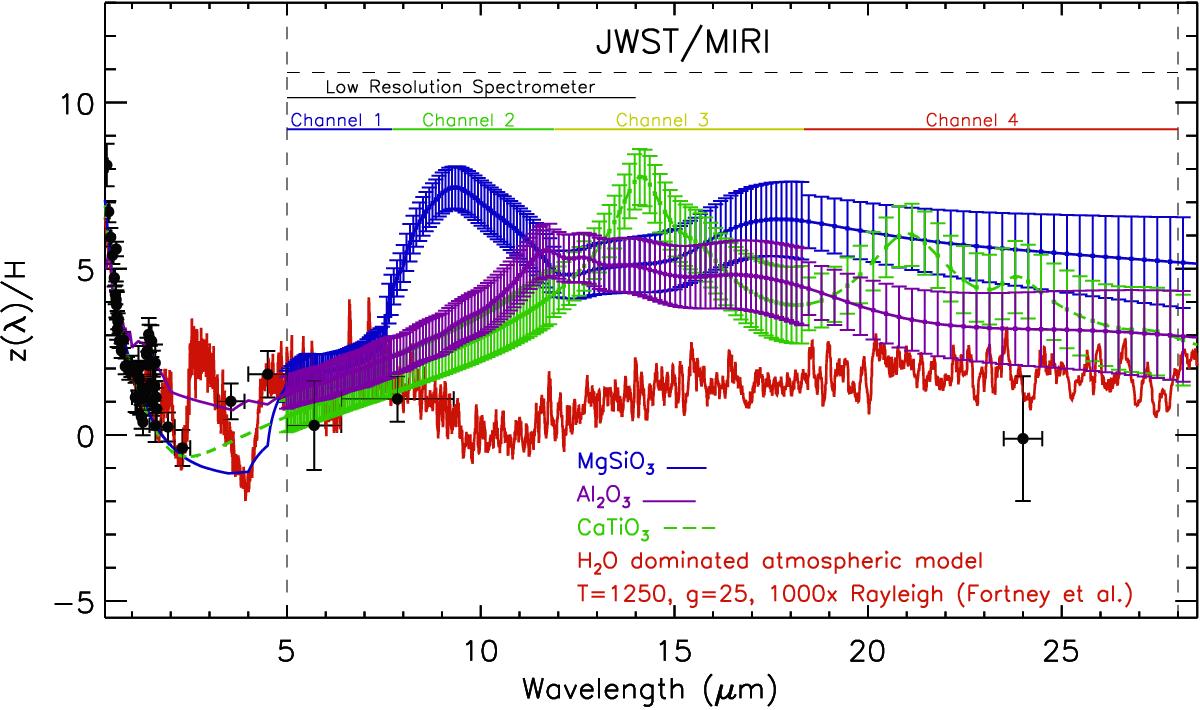

Fig. 9
Transmission spectrum of HD 189733b (Pont et al. 2013; McCullough et al. 2014) over-plotted on cloud model spectra set to R ~ 50 for JWST/MIRI Medium resolution spectrograph channels 1−3 and R ~ 30 for channel 4 with the wavelength coverage highlighted above the different regions of the spectra they cover. We also highlight the region of the spectrum covered by the low resolution spectrometer (5−14 μm).
