Planck 2013 results
Free Access

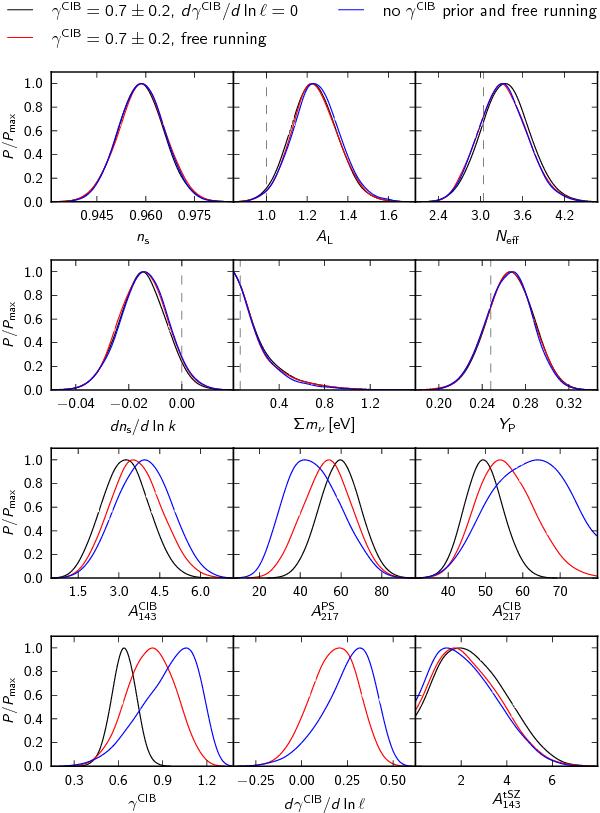

Fig. C.1


Comparison of parameter constraints from Planck+WP+highL for three CIB foreground models with different restrictions on the CIB spectral index γCIB (assumed to be the same in the 143 and 217 GHz channels). The top six panels show cosmological parameter constraints on ns (top left) in the base ΛCDM model and on single-parameter extensions of the ΛCDM model. These are very stable to the modelling of the CIB. Each sub-plot is obtained from an independent analysis of that model with CosmoMC. The lower six panels show the constraints on a subset of the foreground parameters in the base ΛCDM model, some of which change significantly.
