Fig. 1

thumbnail

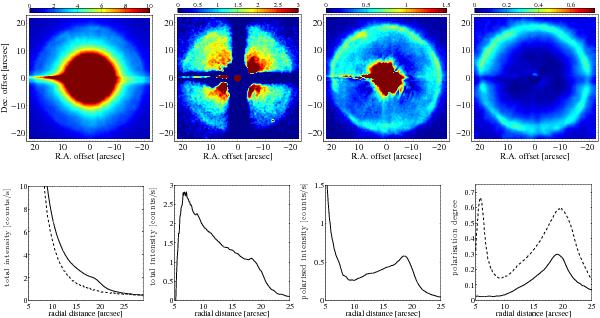

Observations of R Scl in the R-band. Top left to right: total intensity, total intensity with template star subtracted, polarised intensity, and the lower limit of the polarisation degree derived using the measured total intensity (without psf subtraction). The images are smoothed by a Gaussian kernel with a FWHM of two pixels. The colour scale is given in counts/s. The bottom row shows the corresponding radial profiles. The total intensity radial profile shows R Scl (solid line) and the scaled template star (dashed line). The radial profile of the polarisation degree shows the polarisation degree using the measured total intensity (solid line) and the template-subtracted total intensity (dashed line).

This figure is made of several images, please see below:
