Fig. 5

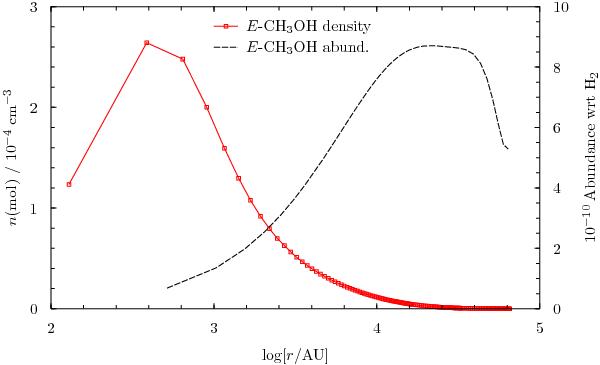

Left panel: radial profiles for the E-CH3OH abundance (black) and density (red) corresponding to the best-fit input abundance of 9.2 × 10-10. The radial trends were produced by the simple chemistry model implemented in the radiative transfer code MOLLIE (see text).
