Fig. 4

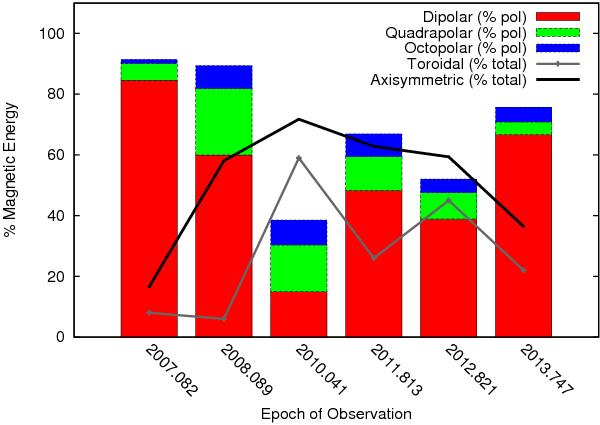

Composition of the magnetic energy (higher order modes) for each epoch of this analysis. The total poloidal component is shown as a column stacked histogram in terms of its dipolar, quadrupolar, and octopolar components. The axisymmetric component is shown as a continuous black line and the toroidal component is shown as a continuous grey line.
