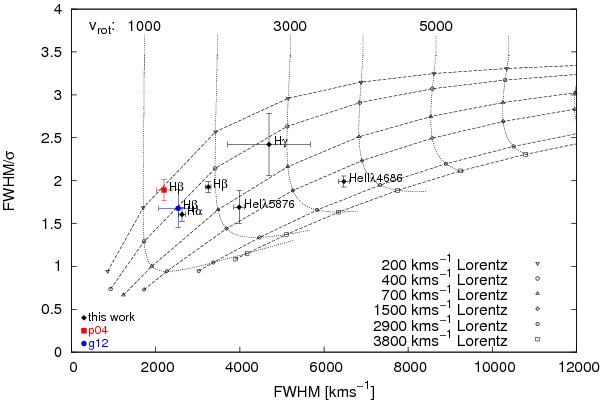

Fig. 22

Observed and modeled line-width ratios FWHM/σline versus line width FWHM in 3C 120. The dashed curves represent the corresponding theoretical line-width ratios based on rotational line-broadened Lorentzian profiles (FWHM = 200 to 3800 km s-1). The rotation velocities reach from 1000 to 6000 km s-1 (curved dotted lines from left to right).
