Fig. 17

thumbnail

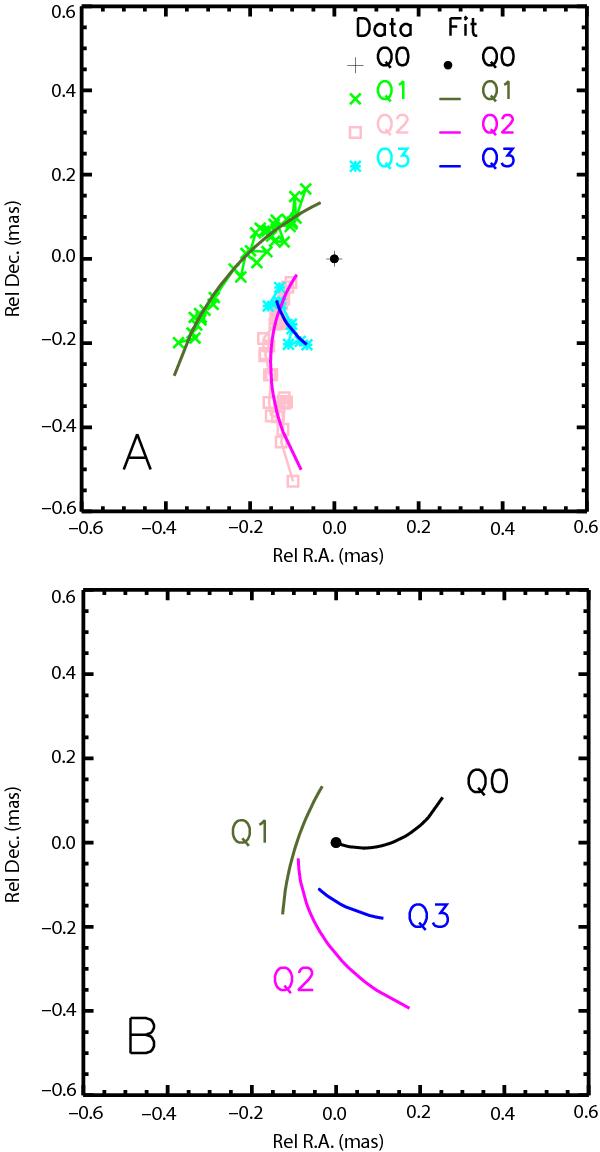

A) Positions of 43 GHz model fitted components as observed on the plane of the sky when the Q0 component is considered to remain stationary at (0,0). Green crosses, pink squares, and cyan asterisks represent the positions of Q1, Q2, and Q3 components, respectively. Curved lines represent the best-fit trajectories of emission features discussed in the text. B) Best-fit trajectories of emission features as given by our new kinematic scenario discussed in the text. The black line symbolizes the trajectory of Q0 (now describing a bent trajectory around the new (0,0) position), whereas the dark green, magenta, and blue lines represent the trajectories of Q1, Q2, and Q3, respectively.
