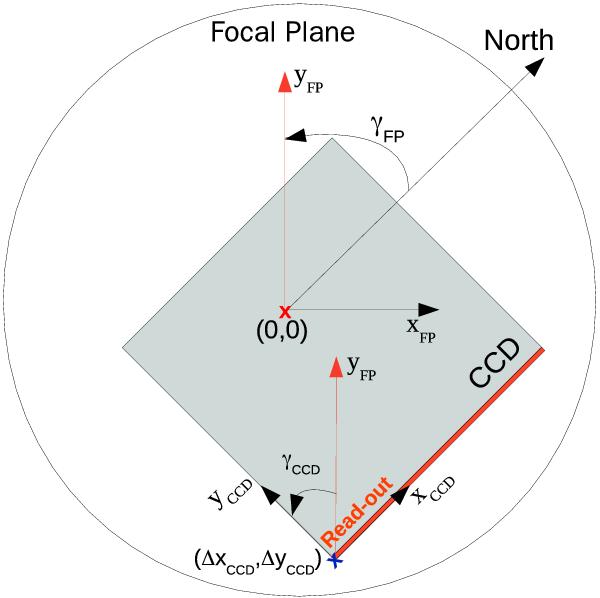

Fig. 2
Definition of the focal plane orientation and relative CCD location and orientation. The focal plane is rotated by the angle γFP with respect to the north-direction. The origin of the CCD in the focal plane is defined by its offset (ΔxCCD, ΔyCCD) in mm from the centre of the focal plane. It is then rotated by the angle γCCD around its origin.
