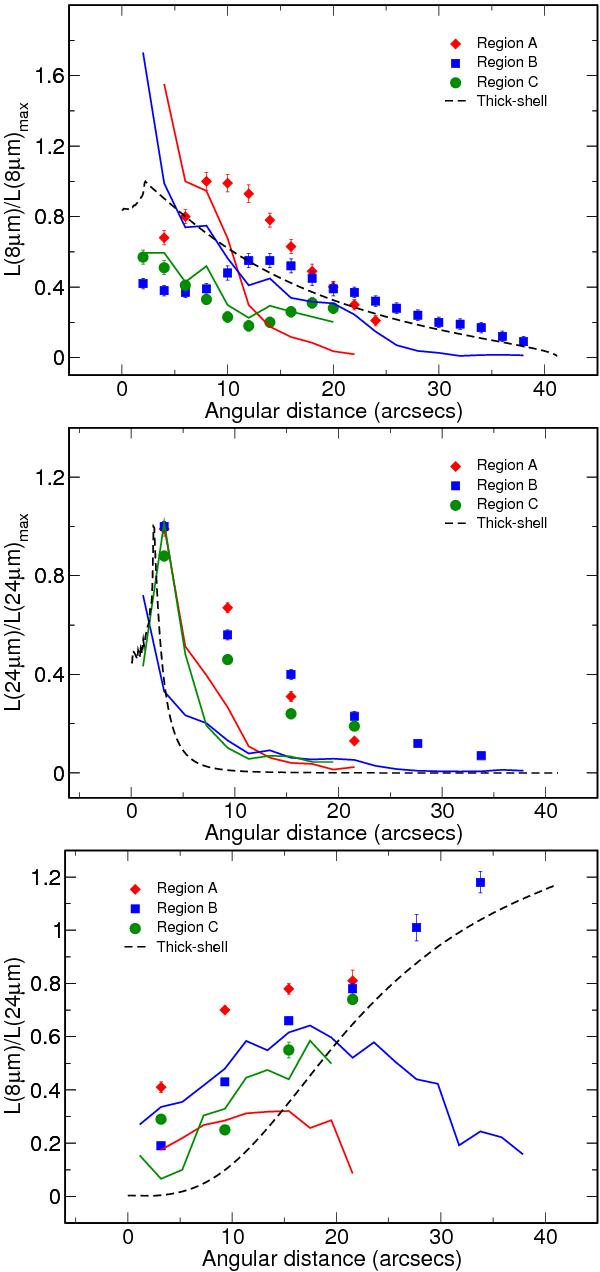

Radial profiles of the relative surface brightness of the Spitzer emission bands at 8 μm and 24 μm and the corresponding ratio across the annuli in the three regions with symbols as defined in Fig. 2.
