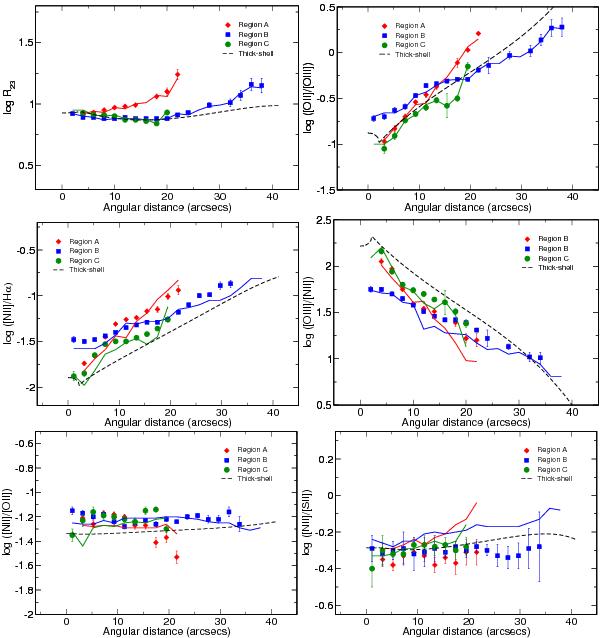

Radial profiles of several emission-line ratios based on the optical reddening-corrected emission lines across the annuli in the three defined regions. From up to down and left to right:  R23, [O ii]/[O iii], [N ii]/Hα  [O iii]/[N ii], [N ii]/[O ii], and [N ii]/[S ii]. Symbols and lines are the same, as defined in Fig. 2.
