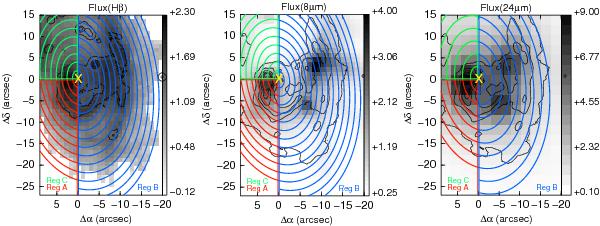

Elliptical annular regions utilised to extract the radial profiles on top of the non-calibrated Hβ (left), 8 μm (middle) and 24 μm (right) emission distributions (see MI11 for more detailed plots in these bands). Units are arbitrary in logarithmic scale. The origin of coordinates is located at RA (J2000): 1h32m45.7s, Dec (J2000): +30°38′′55.1′ and is marked with a yellow “X”. The three elliptical regions considered through the paper are labelled as “A” (red), “B” (blue), and “C” (green) and sample the SE, W, and NE part of NGC 588, respectively. In all images, N points to up and E to left.
