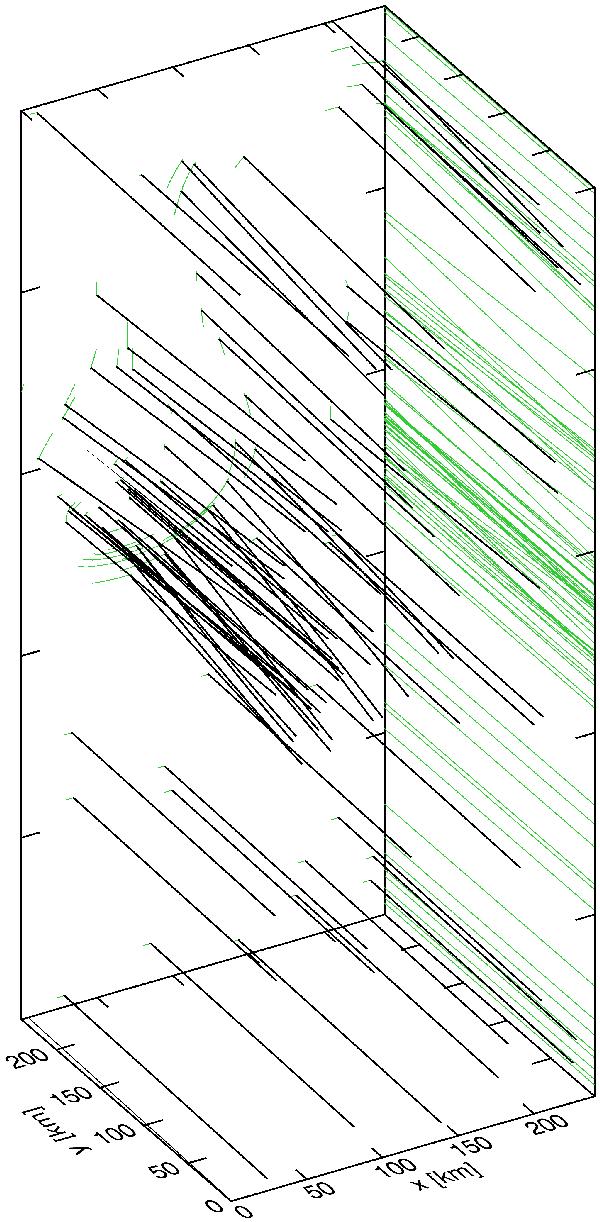

Fig. 9
Three-dimensional representation of the magnetic field lines in a snapshot of the AD simulation with θ = 89° at t = 160 s. The vertical Z axis is 1000 km long. The density of the field lines is proportional to the magnetic field strength and their origins in XZ plane is random. Projections of the field lines into XZ and YZ planes are indicated in green color.
