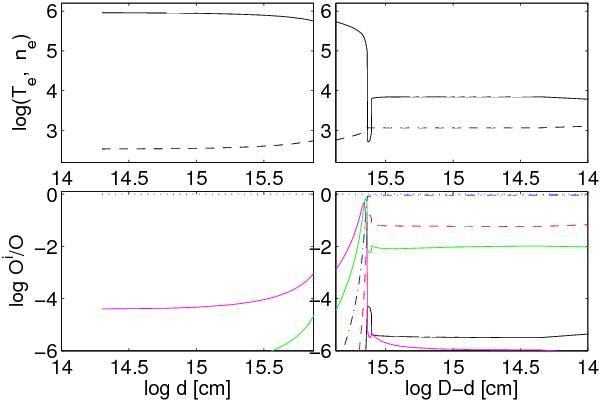

Top panels: profile of the electron temperature (solid line) and of electron density (dashed line); bottom panels: profile of the fractional oxygen ions: O0/O (black solid), O+/O (red dashed), O2+/O (blue dot-dashed), O3+/O (green solid), O4+/O (magenta solid), and H+/H (red solid) throughout a cloud corresponding to the Kakazu et al. galaxy no. 270. The shock front is on the left of the left panel; the photoionization flux reaches the right edge of the right panel. The model corresponds to O/H = 6.5 × 10-4.
