Fig. 3

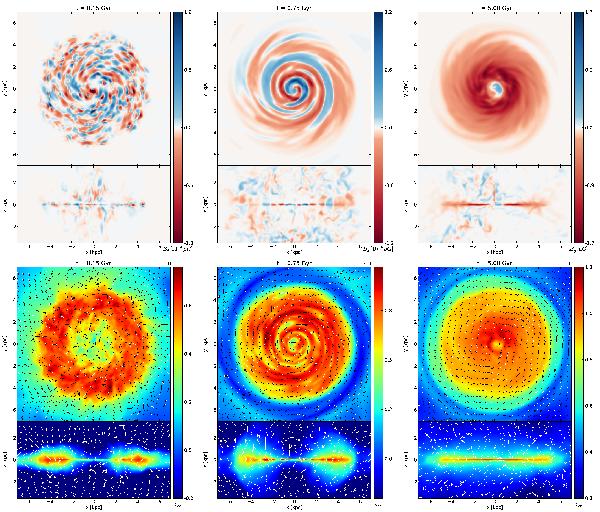

Evolution of the magnetic field. Upper panels: evolution of the Bφ component (expressed in μG) in edge-on and face-on view of the model v70 for selected time-steps: 0.15, 0.75, and 5.00 Gyr. Lower panels: energy density of the cosmic rays and the normalised vectors of the magnetic field at the corresponding time-steps.
This figure is made of several images, please see below:
