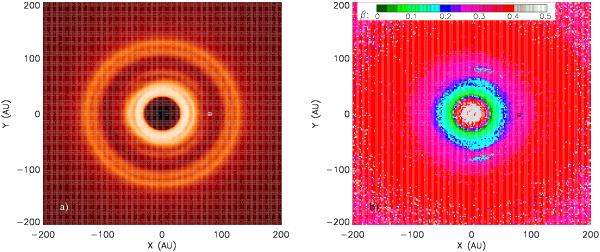

Fig. 9

Extended disc perturbed by an embedded planet. a) Normalized surface density profile viewed head-on; b) particle size (as parameterized by the β ratio) dominating the geometrical cross section. The planet has a mass μ = 0.002 and is on a circular orbit at 75 AU (nominal run G with τ0 = 2 × 10-3).
