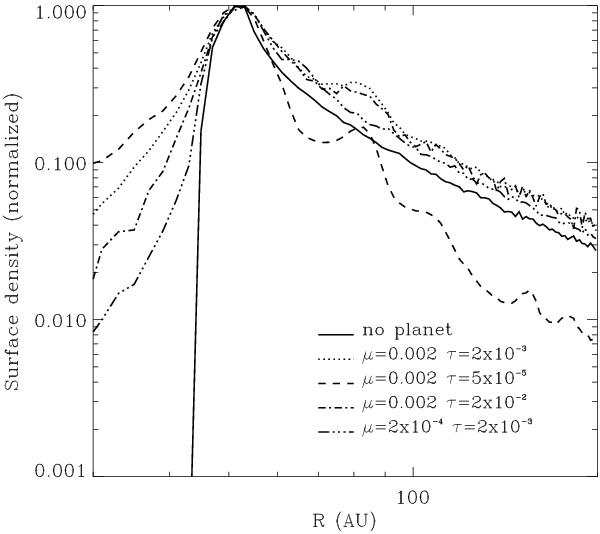

Fig. 3
Radial profile (normalized) of the vertical optical depth for different set-ups of the narrow-ring case. For the cases with planet, the profile is taken along a cut passing at 90 degrees from the planet’s position. The planet is on a circular orbit and is located at 75 AU for the nominal μ = 0.002 cases, and at 62 AU for the μ = 2 × 10-4 one.
