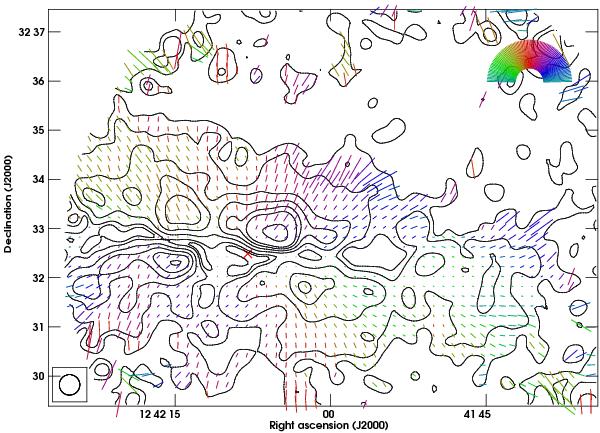

Fig. 10

Linearly polarized emission at λ 6.2 cm (Eff+VLA), with apparent magnetic field orientation. The length of the vectors is proportional to the polarization degree (1″ Ӕ 2%). The angular resolution is 25″ and the rms noise (σ) is 20 μJy/beam. Contour levels are given by σ·( − 2,2,4,8,12,16,20,32). The “ × ” indicates the dynamical center. In the electronic version the angles are color coded as shown in the colorfan in the upper-right corner.
