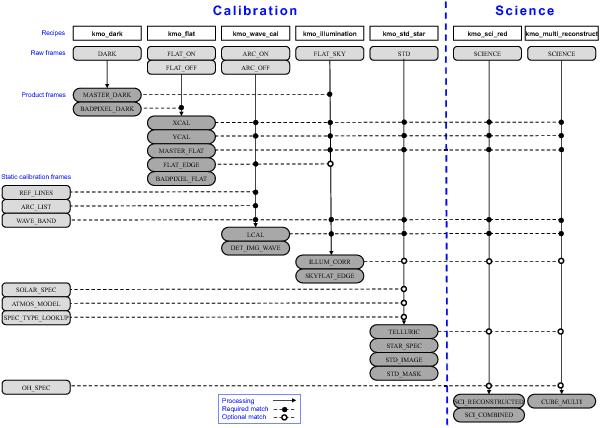

Fig. 4

Calibration cascade for KMOS. The top rows show the different recipes (modules) executed, and the raw files they require. Underneath are the products from each recipe. The horizontal lines showing how, together with some extra static calibrations, these feed into subsequent recipes, leading to the cascade. Here, the instrumental calibrations (kmo_dark, kmo_flat, kmo_wave_cal, kmo_illumination) and the astronomical calibration (kmo_std_star) have been separated from the recipes that process the science data itself (kmo_sci_red and kmo_multi_reconstruct).
