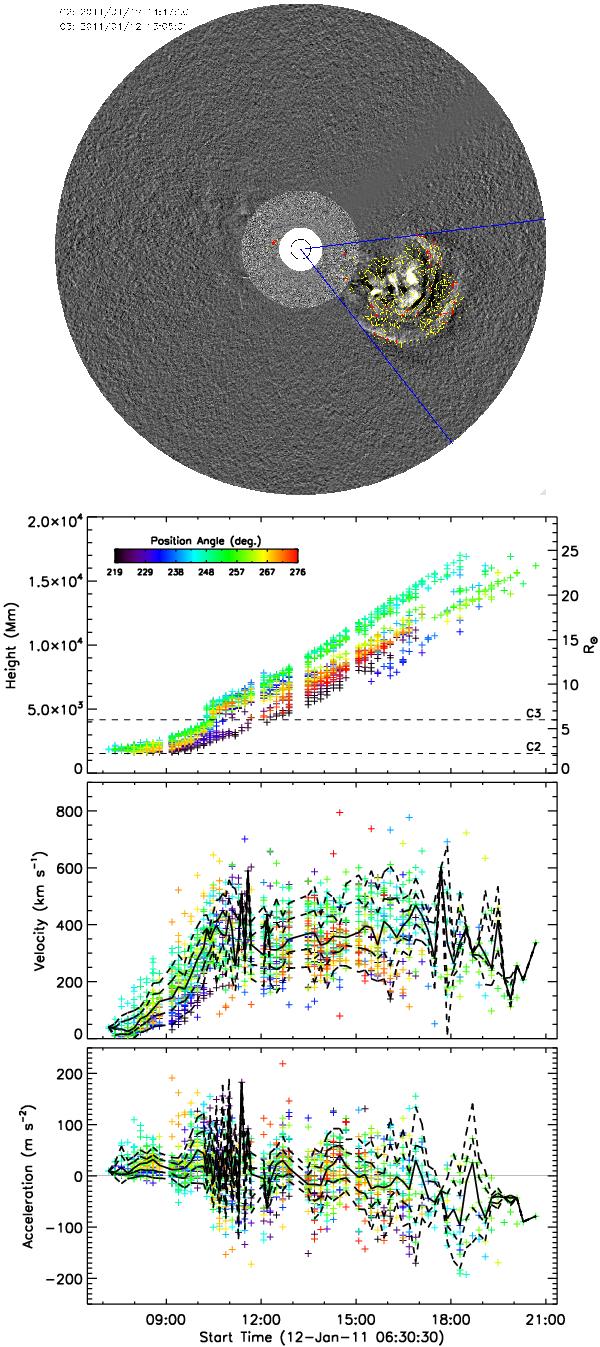

Fig. 10

Savitzky-Golay filter applied to the automated CORIMP CME detection and tracking of an event observed by SOHO/LASCO on 2011 January 12 (top image). The detected CME structure is highlighted in yellow, and the outermost height measurements indicated in red. The top plot of the lower panels shows the height-time measurements across the angular range of the CME (indicated by the colourbar). The middle and bottom plots show the derived velocity and acceleration profiles, with the median (solid line), interquartile range (inner dashed lines) and upper and lower fences (outer dashed lines) over-plotted.
