Fig. 10

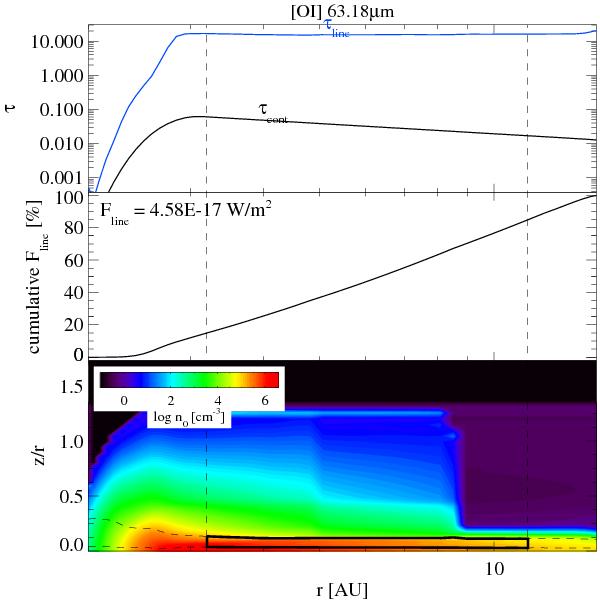

[O i] emission from the disc for model 1. The upper panel shows the continuum at 63 microns and the line vertical optical depth. The middle panel shows the cumulative [OI] 63 micron emission from the inner to the outer disc. The lower panel exhibits the atomic oxygen density distribution in the disc. The contour encloses the 70% × 70% emission area.
