Fig. 8

thumbnail

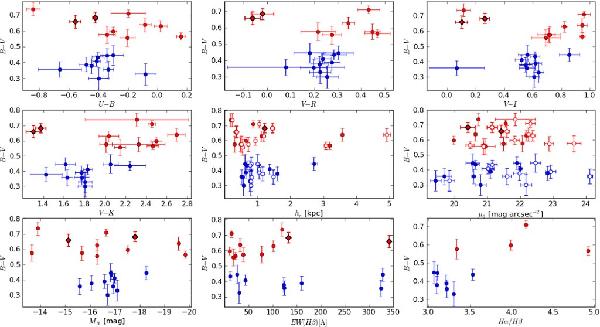

Follow-up on the different behavior of the blue and red (GB and GR in the text) groups defined from the total B − V color histogram in Fig. 7. The marker coloring is self-evident, except in the scale length (hr) and central surface brightness (μ0) scatter plots, where the filled and open circles correspond to disk parameters defined over 24 ≲ μB ≲ 26, and 26 ≲ μB ≲ 28 mag arcsec-2, respectively. The black/red diamonds are UM461 and UM500, which belong to GR but deviate in many of the plots. MB is the absolute B band luminosity integrated down to rH in Vega magnitudes. The equivalent width is taken from Terlevich et al. (1991). The Hα/Hβ ratio, corrected for Galactic extinction, is estimated from the SDSS spectra where such existed.
