Fig. 6

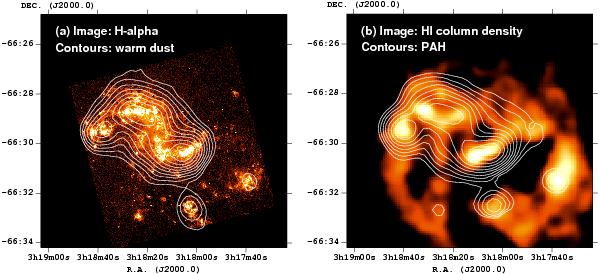

Comparison with other wavelength images. a) Hα image (Hadfield & Crowther 2007) superposed on the warm dust contours. b) H i image taken from Ryder et al. (1995) superposed on the PAH contours. Contours for the warm dust and PAH components are the same as those in Figs. 5c and b.
