Fig. 4

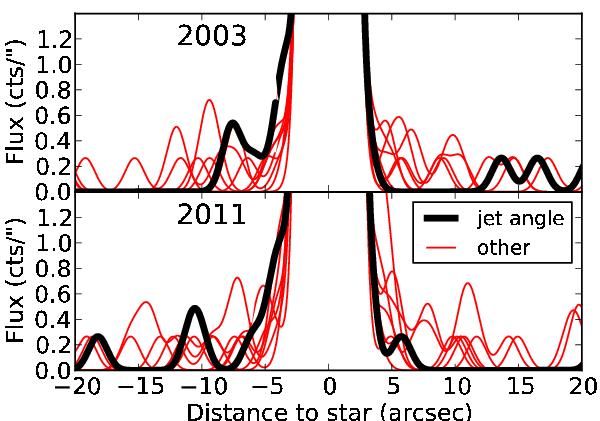

Projection of Chandra/ACIS counts into one dimension. Black line: projection onto the jet axes in a rectangle with half-width 1′′. Red/gray lines: projection onto a set of lines through HD 163296, but with a set of angles rotated by 20°, 40°, 60°, 80°, 100°, 120°, 140° and 160° with respect to the jet. All fluxes are smoothed. Distances are positive for the NE jet and negative for the SW jet. See the electronic edition of the Journal for a color version of this figure. (This figure is available in color in electronic form.)
