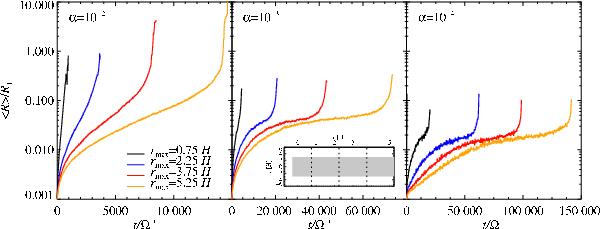

Fig. 11

Particle growth for different radial extents of the simulation box and turbulence strengths. The mean particle size ⟨ R ⟩ is shown as a function of time in inverse Keplerian orbits Ω-1 for α = 10-2 (left panel), α = 10-3 (middle panel) and α = 10-4 (right panel). The size of the box has been extended in the radial direction, with rmax colour coded as: black 0.75 H, blue 2.25 H, red 3.75 H and yellow 5.25 H. For all runs zmin = −6.0 H, zmax = 6.0 H and rmin = −0.75 H. The inlay figure shows the simulation domain, with the considered radial extents marked.
