Fig. 6

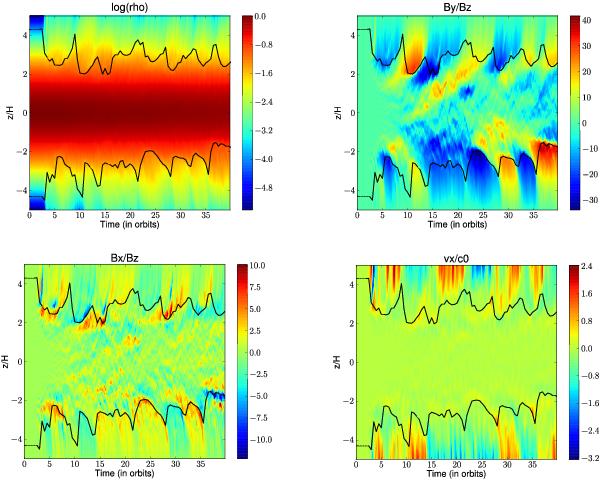

Space-time diagram of the logarithm of the horizontally averaged mass density (upper left panel), ⟨ By ⟩ / ⟨ Bz ⟩ (upper right panel), ⟨ Bx ⟩ / ⟨ Bz ⟩ (lower left panel) and ⟨ vx ⟩ /c0 (lower right panel) for model Diffu4H. For all panels, the solid line shows the location of unit ratio of horizontally averaged thermal and magnetic pressures, β = 1.
