Fig. 7

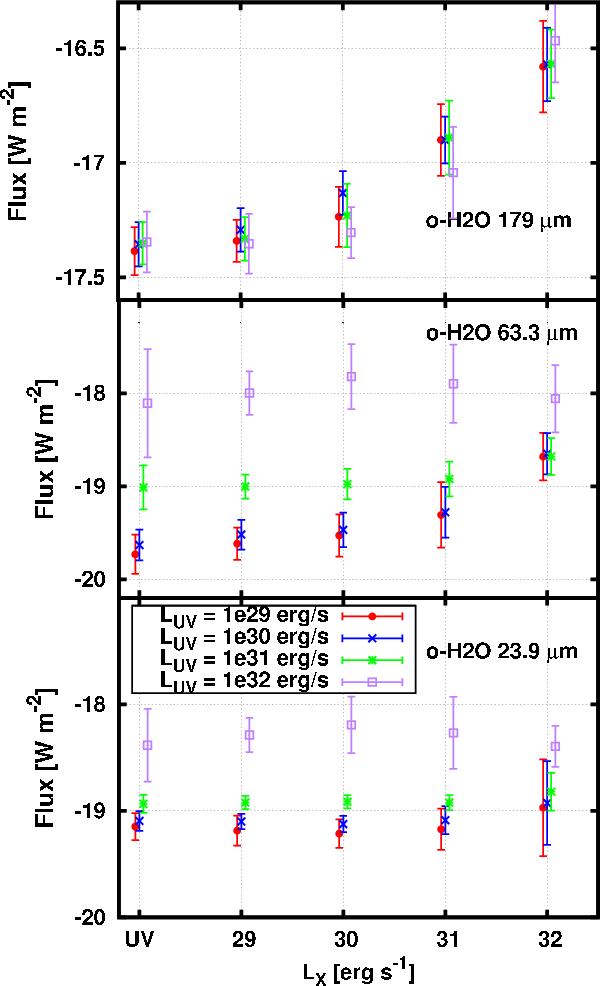

From lower to upper panel: water line fluxes for the 23.9 μm, 63.3 μm and 179 μm transition versus the X-ray luminosity. Color coding is the same as shown in Fig. 1. The X-ray impact is more evident as we move toward the outer disk.
