Fig. 7

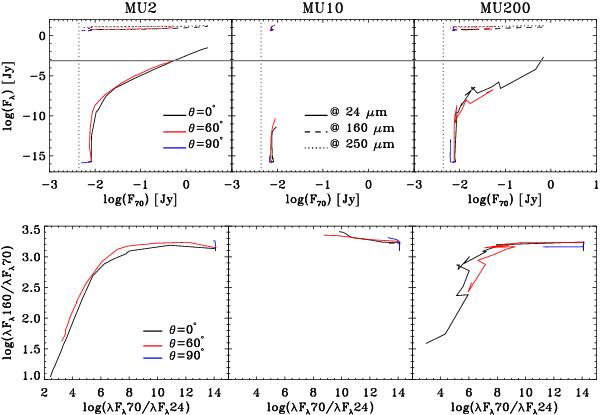

Top: evolutionary diagram of the flux at at 24 μm (solid line), 160 μm (dashed line), and 250 μm (dotted line) as a function of the flux at 70 μm for the three models and for the the same three inclination angles as previously. The horizontal gray line indicates the aforementioned 24 μm sensitivity limit of Spitzer and the vertical dotted line the 70 μm sensitivity limit of the Herschel PACS instrument.Bottom: color–color plot representing log(λFλ160/λFλ70) as a function of log(λFλ70/λFλ24) for the three models with the same three inclination angles.
