Fig. 4

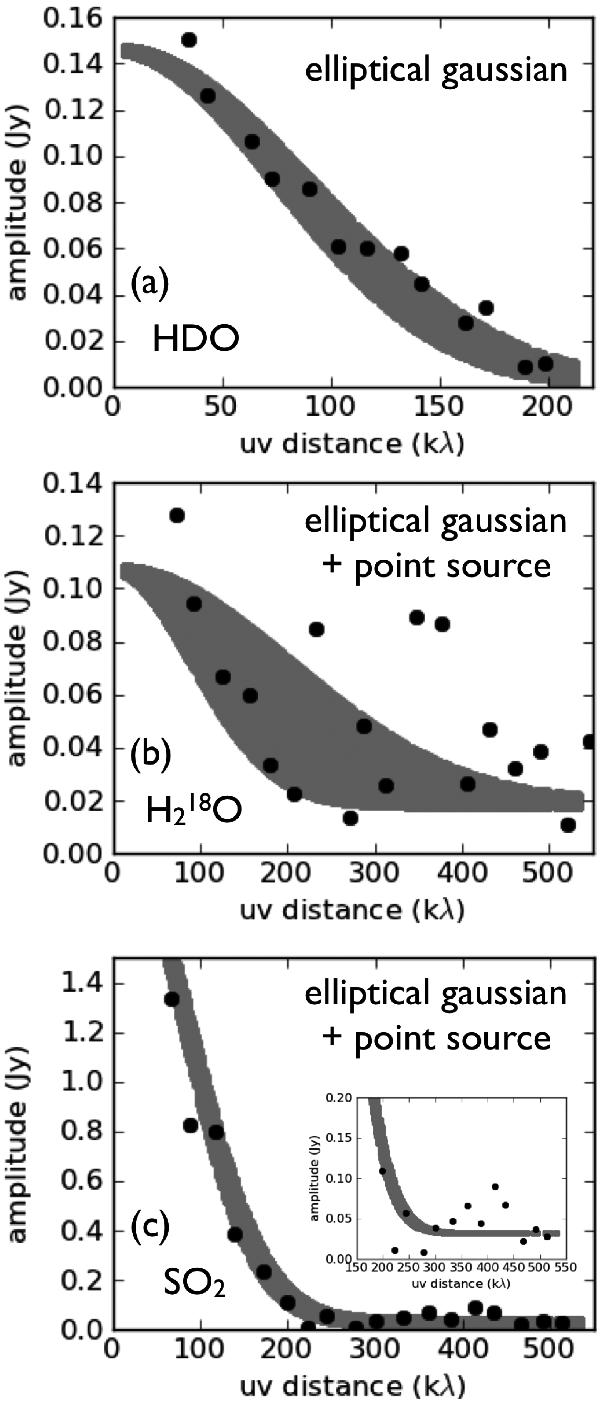

Observed visibilities of HDO, H
O and SO2 (filled circles) overplot with model visibilities (grey area). The observed data are vector-averaged corresponding to the circularly symmetric structure. Full model visibilities are plotted in order to show the non-circular symmetric structure of the source.
