Fig. 8

thumbnail

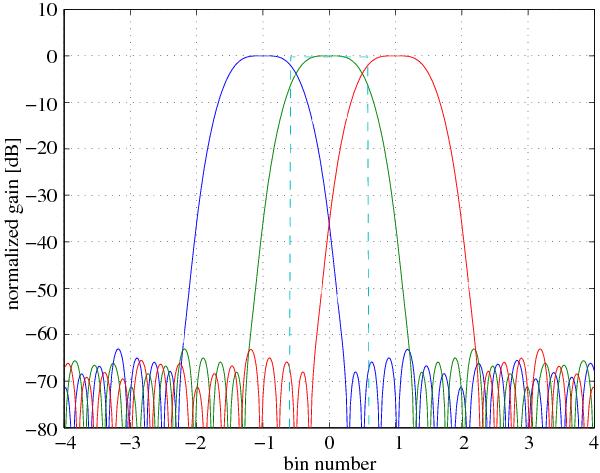

Frequency response of the polyphase filter bank signal processing pipeline. The diagram shows three adjacent frequency bins in logarithmic scale measured with the 32k channel XFFTS. The dashed lines illustrate the equivalent noise bandwidth (ENBW) for the corresponding spectral bin.
