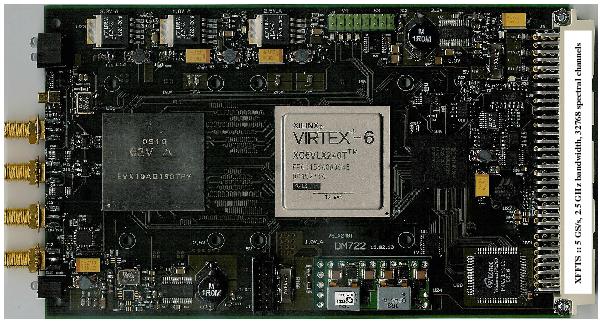

Fig. 4


XFFTS board that uses E2V’s fastest 4  ×  1.25 GS/s 10-bit ADC and the high-performance Xilinx Virtex-6 LX240T FPGA. By applying time interleave techniques, the four 1.25 GS/s ADCs can be combined into two 2.5 GS/s or one 5 GS/s converter. The XFFTS allows analyzing an instantaneous bandwidth of 2.5 GHz with 32k spectral channels. Depending on the processing set-up and the input signal level, the board consumes 20 − 25 Watt.
