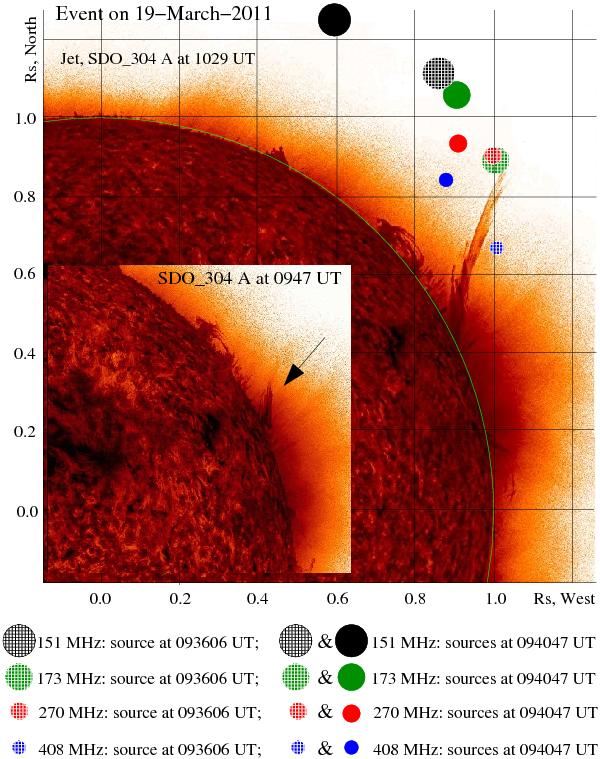

Fig. 4
Event on 19 March 2011. The same as in Fig. 3 jet observed by AIA/SDO 304 Å in superposition of the metric type III radio sources obtained with Nançay Radioheliograph. Two images show the appearance and the evolution of the jet(s) between 09:47 and 10:29 UT. The jet footpoint was located ~25° behind the west limb from the SDO point of view NRH: Overlaid filled and hatched circles represent centroid positions of the double type III radio sources at frequencies between 408–151 MHz at 09:36:06 and 09:40:47 UT, respectively. The spatial coincidence of the type IIIs sources and the jet suggests the common origin of both phenomena. Solar north is at the top, west is to the right.
