Fig. 1

thumbnail

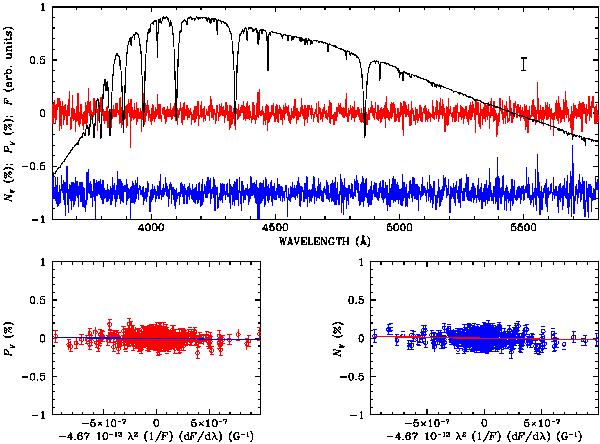

The observations of HD 205805 obtained with FORS1 on 2005-06-12. The top panel shows the observed flux F (black solid line, in arbitrary units, and not corrected for the instrument response), the PV = V/I profile (red solid line centred about 0), and the null profile NV (blue solid line, offset by  − 0.75% for display purpose). The null profile is expected to be centred about zero and scattered according to a Gaussian with σ given by the PV error bars. A typical PV error bar is shown in the upper right of the upper panel. The slope of the interpolating lines in the bottom panels give the mean longitudinal field from PV (left bottom panel) and from the null profile (right bottom panel), both calculated using the H Balmer and metal lines. The corresponding  ⟨ Bz ⟩  and  ⟨ Nz ⟩  values are  − 139 ± 120 G and  − 220 ± 140 G, respectively.
