Fig. 7

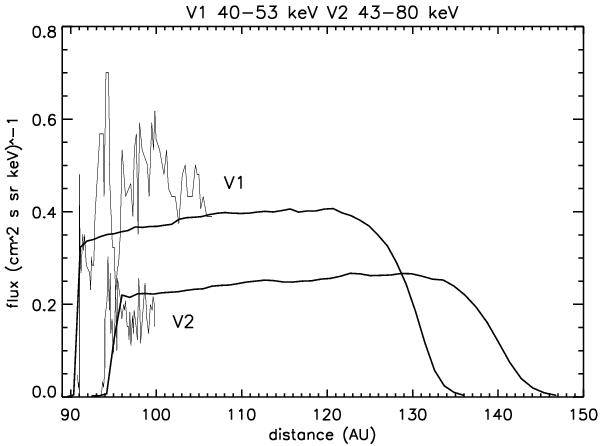

Calculated energetic proton fluxes along the trajectories of Voyager 1 (40−53 keV protons) and Voyager 2 (43−80 keV protons) in the heliosheath compared with the Voyager LECP measurements up to 2009/105 (taken from Hsieh et al. 2010). The Voyager data are shifted in distance to fit the the termination shock position in the Bonn model.
