Fig. 6

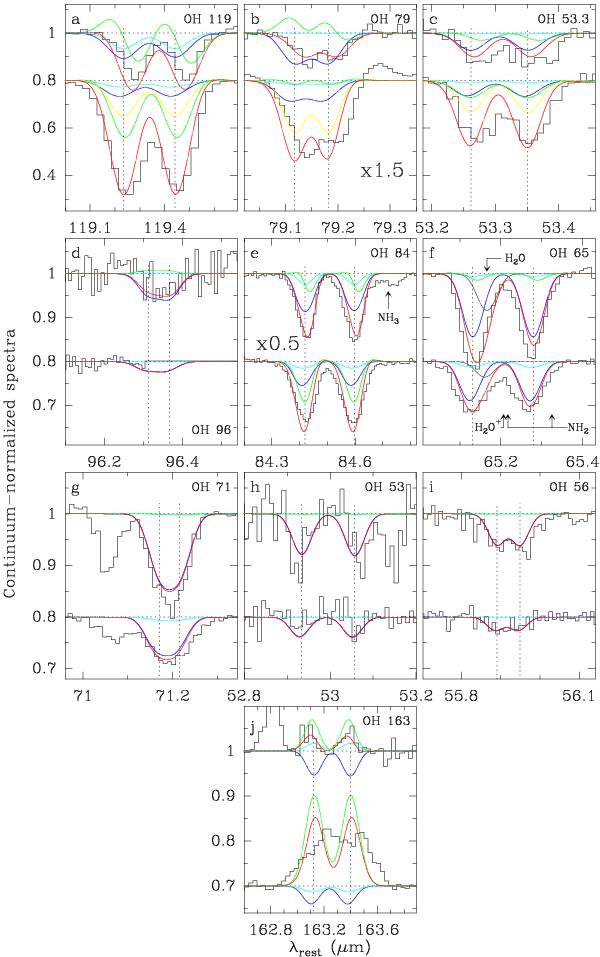

OH lines in NGC 4418 (upper spectra) and Arp 220 (lower spectra). Λ-doubling is resolved in most transitions, except for the two narrowly separated 71 μm components that are blended into a single spectral feature. Model results are also shown. For NGC 4418, the blue, light-blue, and green curves show the models for the Ccore , Cwarm , and Cextended components, respectively; for Arp 220, the blue, light-blue, green, and yellow curves show the models for Cwest , Ceast , Cextended , and Chalo , respectively. The gray curves in panel f) show the expected contribution of the H2O 625 → 514 line to the spectra around 65.2 μm. The red curves show the total from all components.
