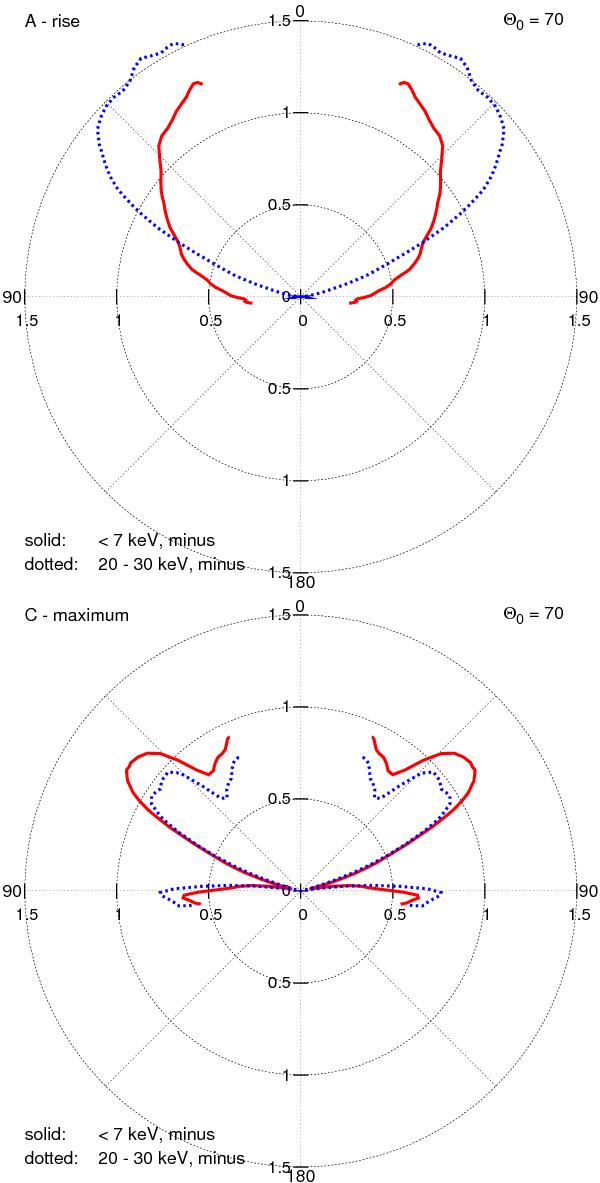

Polar diagrams of the intrinsic beam patterns of V 0332+53 for the observations A (rise) and C (maximum) for  <7 keV and 20–30 keV, assuming an inclination angle of Θ₀ = 70° between the line of sight and the rotation axis of the neutron star. Like in Fig. 10, up (0°) is the direction straight up from the magnetic pole, 90° and 270° are the directions tangential to the neutron star surface at the magnetic pole.
