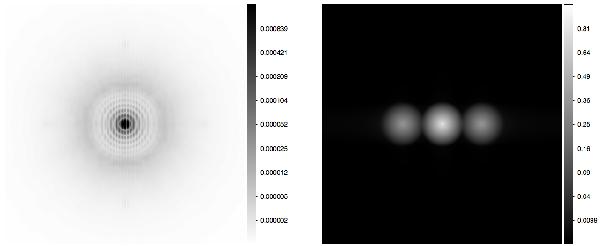

Fig. 4
Simulated PSF of LINC-NIRVANA with SR = 70% (left panel) and the corresponding MTF (right panel). The PSF is monochromatic in K-band and is the PSF of a 8.4 m mirror (the diameter of the two mirrors of LBT) modulated by the interferometric fringes. Accordingly, in the MTF the central disk corresponds to the band of a 8.4 m mirror while the two side disks are replicas due to interferometry.
