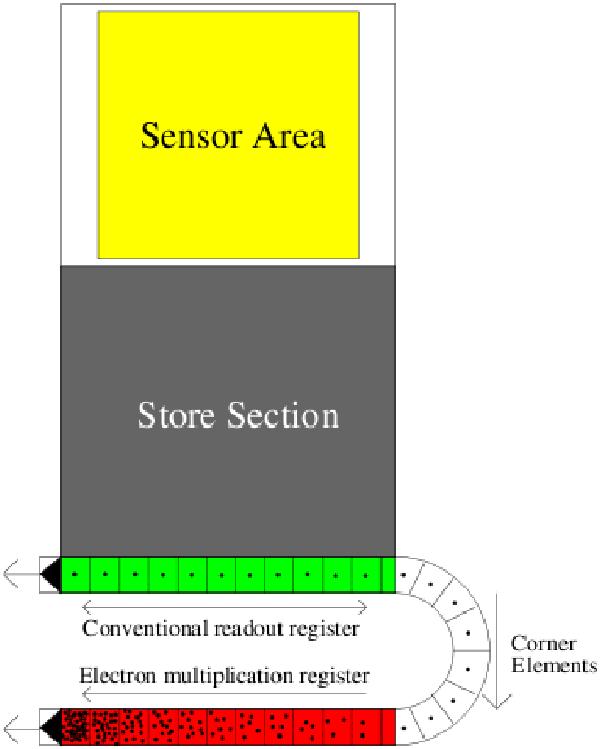

Fig. 1
Schematic drawing of a frame transfer EMCCD. After exposure, the image is rapidly parallely shifted into the storage area, where it is read out via the green serial register. The red register is an extension of the serial register where the pixels are shifted with significantly higher voltages, hereby generating cascade amplification via impact ionisation.
