Fig. 12

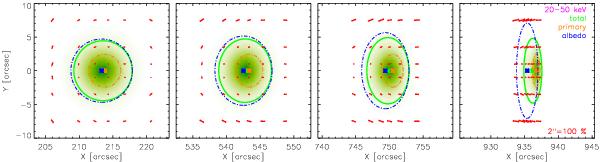

Total X-ray brightness and polarization maps for the photon distribution created by the Δν = 0.1 electron distribution for a 5′′ primary source. The resulting total sources sit at four disk locations of X = 213.0′′,542.5′′,749.9′′,936.4′′ at Y = 0′′ (corresponding to μ ~ 0.97,0.82,0.62,0.22). The green, blue and orange ellipses give the FWHM of the total, albedo and primary sources respectively. Green, blue and orange asterisks give the centroid position of the total, albedo and primary sources. At all disk locations the albedo component is the dominant component over the primary component.
