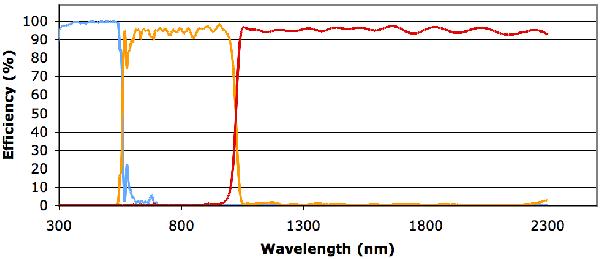

Fig. 4


The combined efficiency of the two dichroic beam splitters. In blue: reflection on the first dichroic; in orange: transmission through the first dichroic and reflection on the second dichroic; in red: transmission through both dichroics.
