Fig. 3

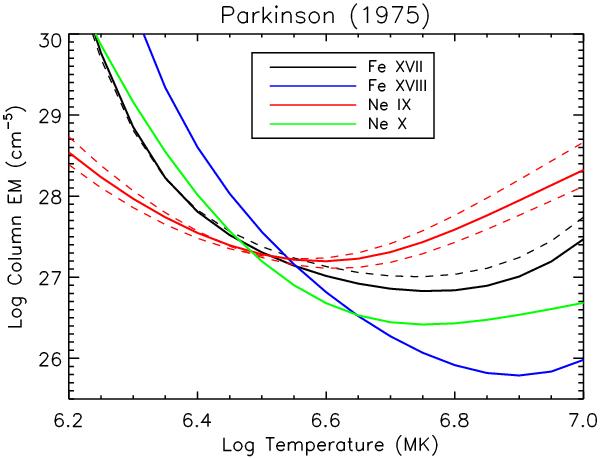

The EM loci plot for the (Parkinson 1975) active region spectrum. The continuous lines are for the resonance lines: Fe xvii 15.01 Å, Fe xviii 14.20 Å self-blend, the He-like Ne ix 13.45 Å (1s2–1s 2p), and the H-like self-blend Ne x 12.1 Å (1s–2p). The dashed lines are for the Fe xvii 17.05 Å, Ne ix 13.70 Å (intercombination) and 11.55 Å (1s2–1s 3p).
