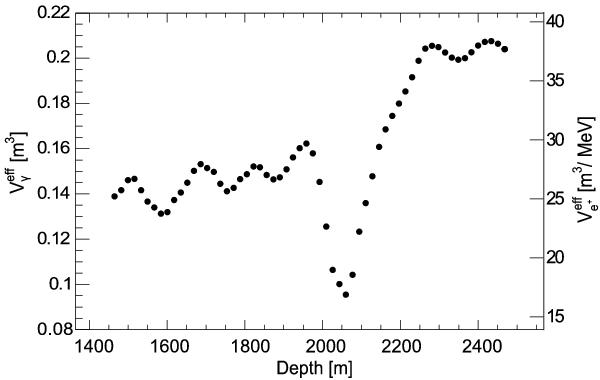

Fig. 5
Effective volume
per DOM (left axis) for detection of Cherenkov photons with (300–600) nm wavelength plotted as a function of depth. The effective positron volume can be read off the right axis. DeepCore strings are not included in these plots.
