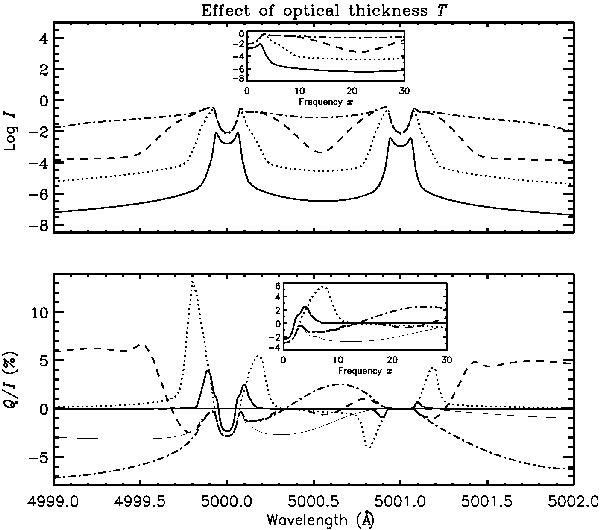

Fig. 3


Emergent Stokes profiles at μ = 0.047 computed for optical thickness T = 2 × 102 (thick solid line), T = 2 × 104 (dotted line), T = 2 × 106 (dashed line) and T = 2 × 108 (dot-dashed line). The thin solid line represents a profile without J-state interference for T = 2 × 108. The other model parameters are the same as in Fig. 2. The insets are plotted as functions of the non-dimensional frequency (x), measured from the line at 5000 Å to compare with the single line results (see Fig. 10 of Sampoorna et al. 2011).
