Fig. 1

thumbnail

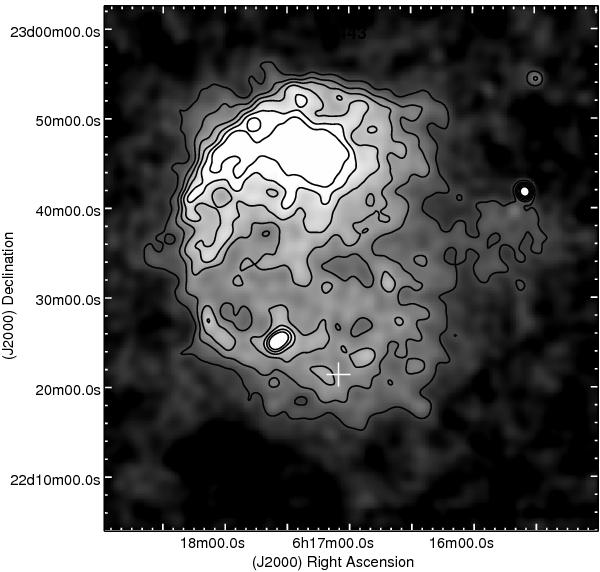

Radio continuum image of IC 443 at 74 MHz. This map has been corrected for the attenuation of the primary beam. The angular resolution of this image was smoothed to a beamsize of 50′′. The grayscale is linear ranging from 25 to 250 mJy beam-1 and the contour levels are 72, 120, 160, 200, 240, and 280 mJy beam-1. The plus symbol marks the position of the compact source CXOU J061705.3+222127. These observations provide the first subarcminute image of the remnant created at meter wavelengths.
