Fig. 8

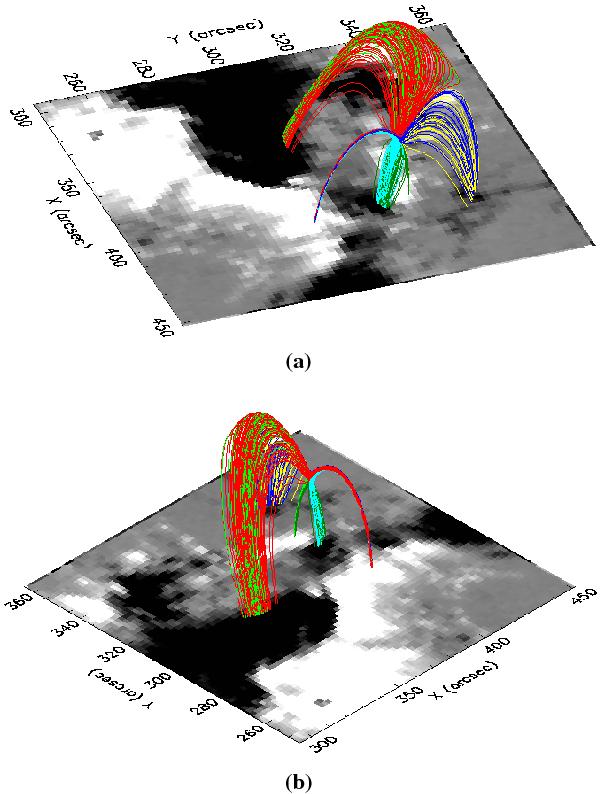

Magnetic field lines and a null point overplotted on the MDI magnetogram acquired at 08:03 UT as seen from different view angles. The different colors indicate different connectivity domains. The null point is located at the intersection of the different color lines.

This figure is made of several images, please see below:
